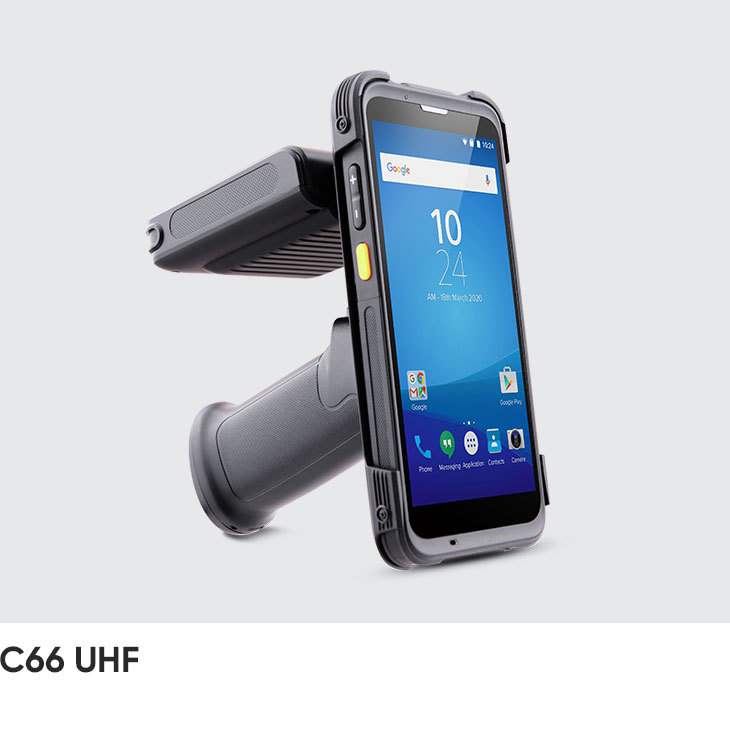

Chainway C66 UHF RFID handheld reader used in garment manufacturer in Fashion

Physical Characteristics

Dimensions

160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.

Weight

657 g / 23.17 oz. (with battery, UHF 1, UHF back clip);

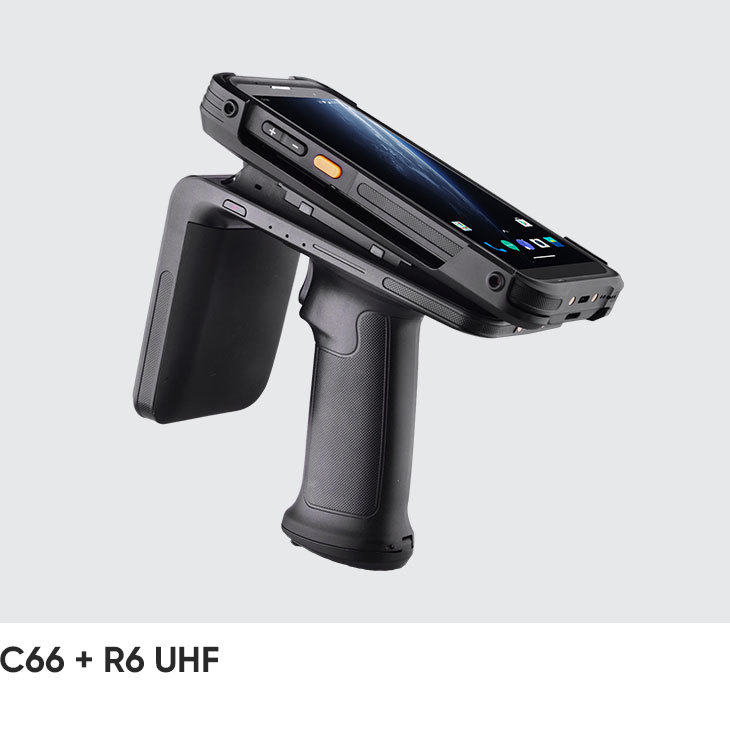

798 g / 28.15 oz. (with battery, UHF 2, C66+R6);
297 g / 10.47 oz. (with battery, UHF 3, Built-in UHF)

Display

5.5-inch high definition full display (18:9) , IPS IGZO 1440 x 720

Battery

Removable main battery (normal version:4420 mAh ; with fingerprint / built-in UHF / volume measurement version: 5200mAh )
5200 mAh optional pistol battery, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable)

Touch Panel

Multi-touch panel, gloves and wet hands supported

Notification

Sound, LED indicator, vibrator

Interfaces

USB Type-C, USB 3.1, OTG, extended thimble;

Card slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Audio

2 microphones，1 for noise cancellation；1 speaker；receiver

Keypad

1 power key, 2 scan keys, 2 volume keys

Sensors

Accelerometer sensor, light sensor, proximity sensor, gravity sensor

Communication

WLAN

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.

WWAN (Europe, Asia)

2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41

WWAN (America)

2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38

Bluetooth

Bluetooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna

Note

*C66 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

Operating System

Android 11; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz

RAM+ROM

3 GB + 32 GB
4 GB + 64 GB (optional)

Expansion

Supports up to 128 GB Micro SD card

User Environment

Operating Temp.

-20 ℃~+50 ℃

Storage Temp.

-40 ℃~+70 ℃

Humidity

5% RH - 95% RH non condensing

Drop Specification

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning

2D Scanner

Zebra: SE4710 / SE2100; Honeywell: N6603; E3200; IA166S

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

Note

*This function is optional

UHF1

Engine

CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular Polarized Antenna (4dBi)

Power

1W (30dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)

Max Read Range

Impinj E710 chip:
28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Impinj R2000 chip:
22m (Impinj MR6 tag, size 70 x 15mm)
24m (Impinj M750 tag, size 70 x 15mm)
30m (Alian H3 Anti-Metal tag, size 130 x 42mm)

Fastest Read Rate

1150+ tags/sec

Communication Mode

Pin Connector

Note

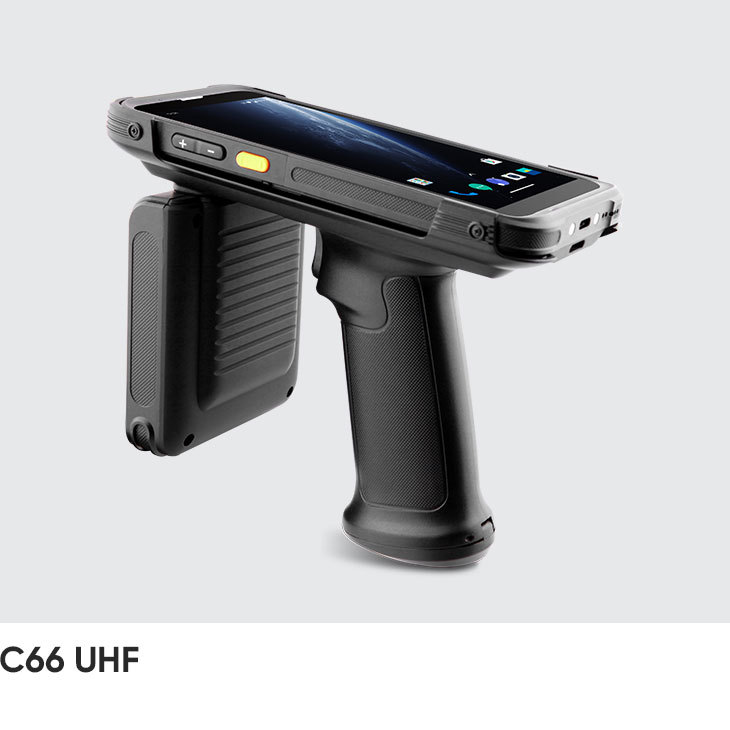

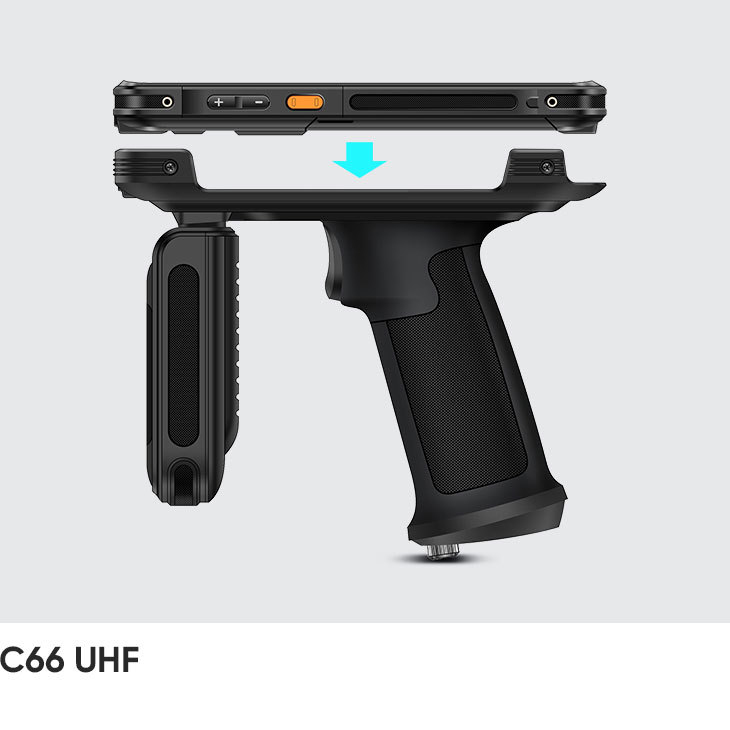

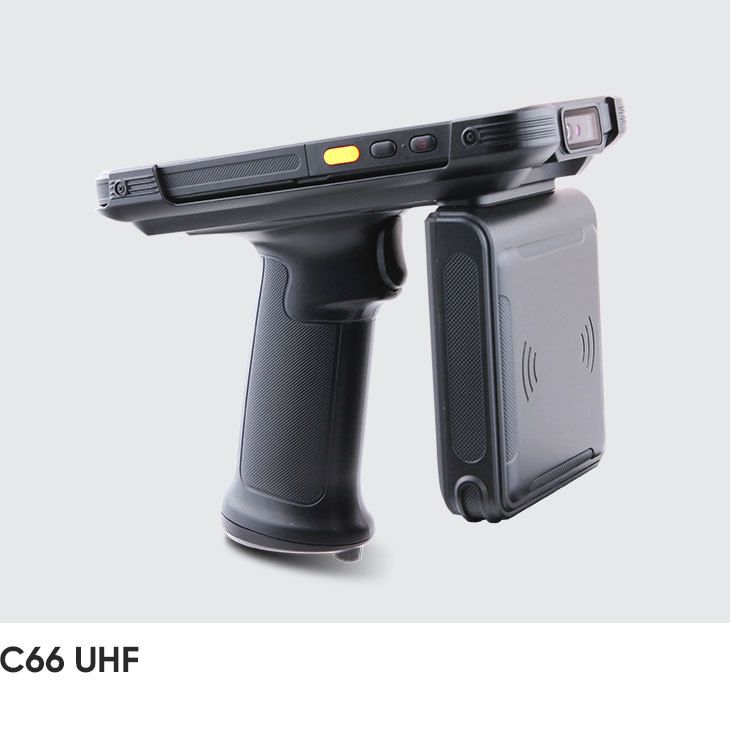

* UHF back clip
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional
